American Recorder 3-in-1 Digital Multimeter – Voltage Detector, Flashlight, Pocket-Size CAT III 1000V Meter - AMERICAN RECORDER TECHNOLOGIES, INC.

American Recorder 3-in-1 Digital Multimeter – Voltage Detector, Flashlight, Pocket-Size CAT III 1000V Meter

by Custom Pro
$ 55.95
SKU TL-1029

This pocket-sized digital multimeter combines essential testing functions with a built-in non-contact voltage detector and an LED flashlight for versatile field use. Its rugged double-molded plastic housing ensures durability, while the large high-contrast LCD display provides clear readings. Capable of measuring DC and AC voltage and current, resistance, capacitance, frequency, and duty cycle, it also features audible continuity, data hold, and overload protection. Rated CAT III 1000V and including test leads, battery, and instructions, this tool offers reliable performance for professionals requiring compact, all-in-one electrical measurement.

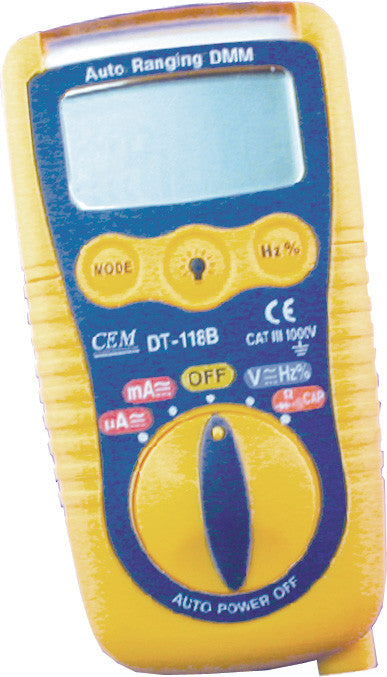

Pocket size digital multimeter with built-in non-contact voltage detector and LED flashlight. Durable double-molded plastic housing with large high contrast LCD display.

MEASURES:

  • DC Voltage
  • AC Voltage
  • DC Current
  • AC Current
  • Resistance
  • Capacitance
  • Frequency
  • Duty Cycle

FEATURES:

  • Audible Continuity
  • Data Hold

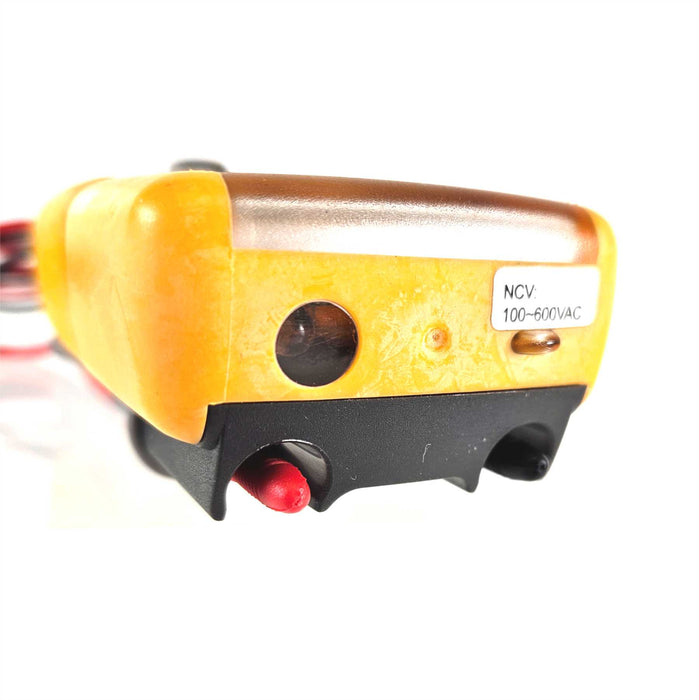

  • Non-Contact Voltage Detection
  • Overload protection
  • CATIII 1000V
  • Double Molded Housing

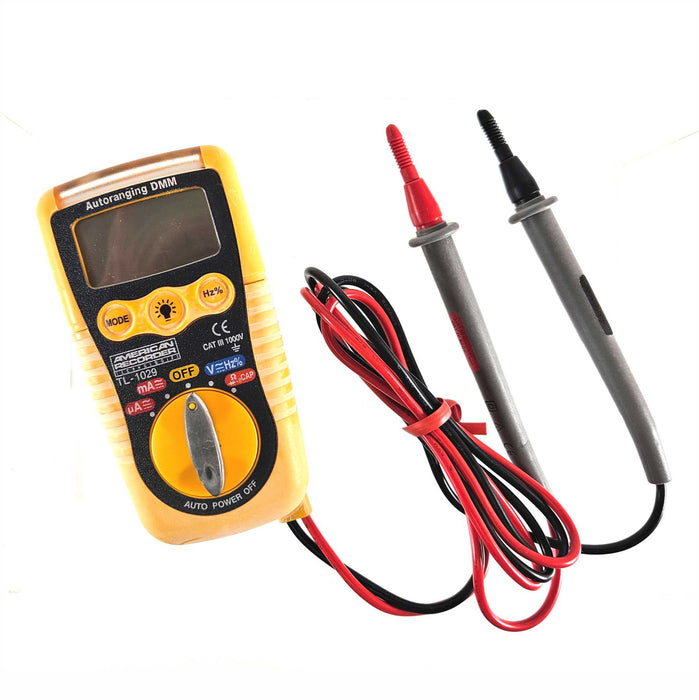

  • Includes test leads, battery and instructions

    SPECIFICATIONS:

    • MAX INPUT VOLTAGE: 660V DC/AC
    • DC CURRENT RANGE: 400.0µA, 200.0mA / 400.0µA, 200.0mA
    • AC CURRENT 50-60Hz RANGE: 400.0µA / 200.0mA / 400.0µA, 200.0mA
    • RESISTANCE RANGE: 400Ω / 4KΩ / 40kΩ / 400KΩ
    • CAPACITANCE RANGE: 4nF, / 40nF / 400nF
    • FREQUENCY RANGE: 9.99Hz / 99.999 Hz / 999.9 Hz / 9.999kHz
    • DUTY CYCLE: 0.5-99%
