Dual RG6 QUAD and CAT5e in a single sleeve. Also available with dual fiber. Available on 500 foot wooden reel.
Applicable Standards

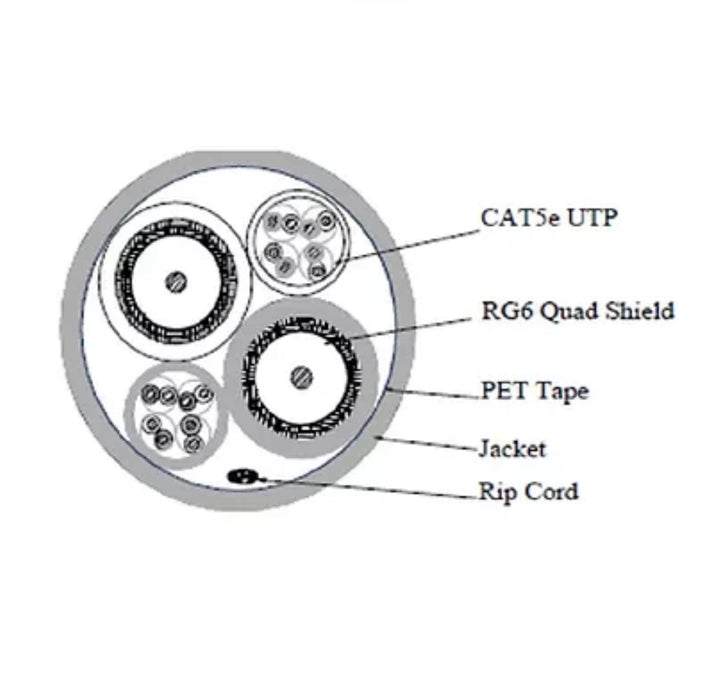

Combination Multi-media Cable for Smart Home
(SCTE IPS-SP-001, TIA-658-C.2)
Description
- Two 4 Pair Cat5E UTP Cable
24 awg solid bare copper Conductor/PE Insulation
(Complies to TIA 568-C.2)
- Two RG6 Quad Shield Coaxial Cable
18 awg copper clad steel (CCS)
Al foil / 60% Al-mg allow Braid Shield+
Al foil / 40% al-Mg allow Braid Shield
(Complies to SCTE ISP-IP-001)
APPROVAL
- ETL US
