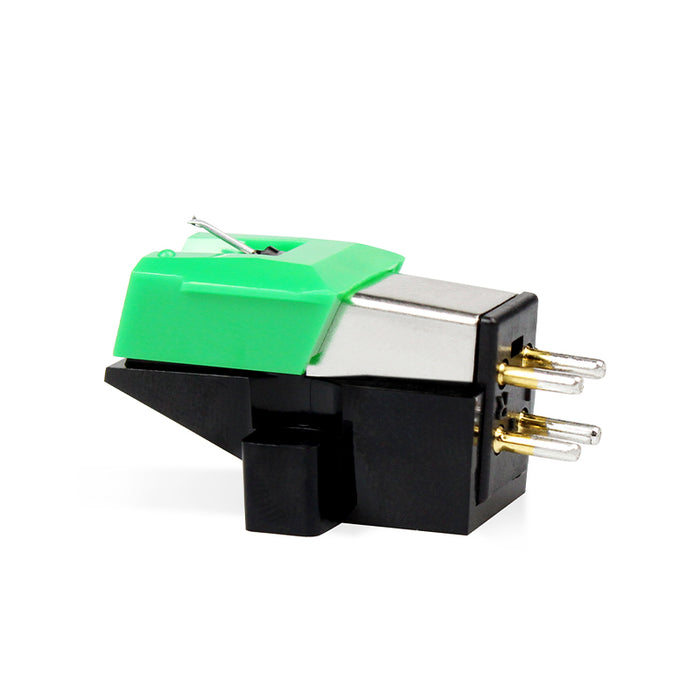

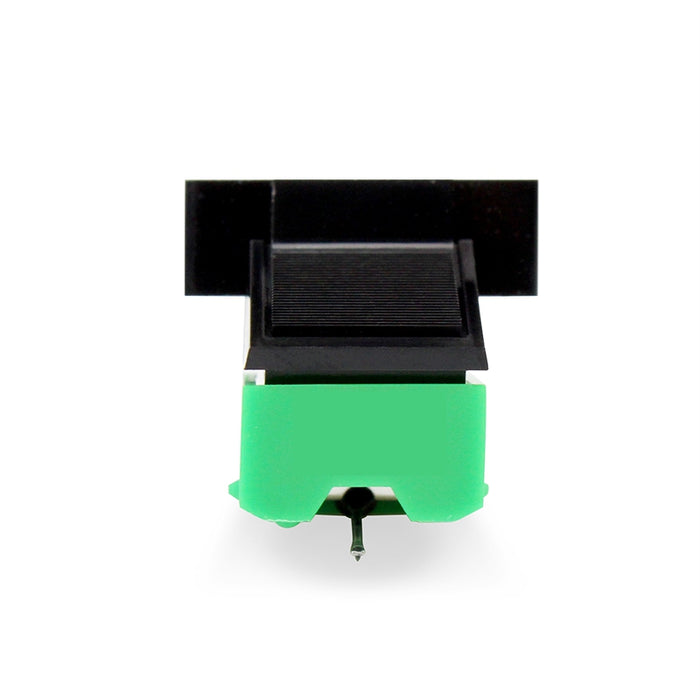

High Performance Turntable Phono Cartridge with Elliptical Stylus
$ 99.95
SKU VDC-140

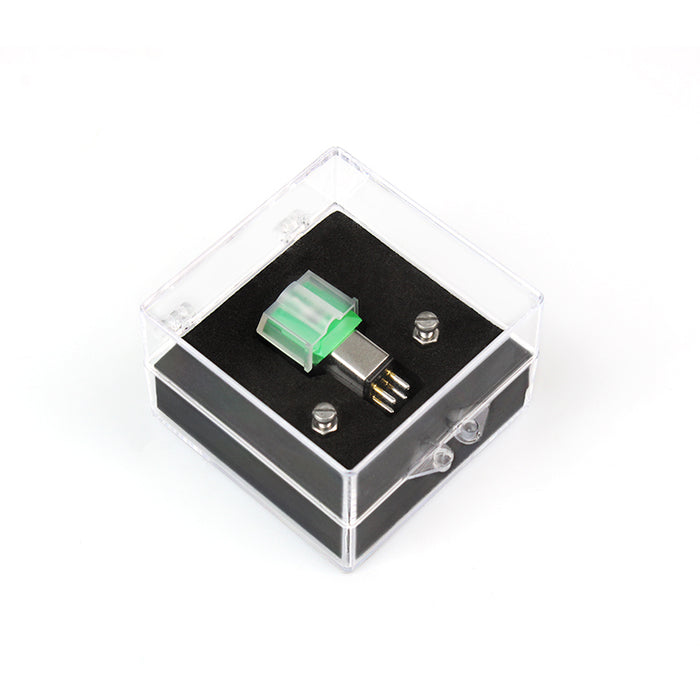

Enhance your turntable’s audio quality and accuracy with this advanced cartridge and stylus. Featuring a precision elliptical diamond stylus paired with dual magnet cartridge pickups, it delivers superior sound reproduction. Crafted from cutting-edge carbon fiber materials, it ensures lightweight construction and balanced weight distribution. Comes complete with head shell mounting screws for easy installation.
SPECIFICATIONS:
- Frequency Response: 20～20,
000Hz - Output voltage: 2.5mV (1kHz,
5cm/sec.) - Channel separation: 20dB (
1kHz) - Output balance: 2.0dB (1kHz)
- Needle pressure: 1.5-2.5g (
recommended gauge pressure 2. 0g) - Coil impedance: 2.8kΩ (1kHz)
- Coil DC resistance: 410Ω
- Recommended load resistance:
47kΩ - Load capacitance: 100～200pF
- Coil inductance: 400mH (1kHz)
- Static obedience: 20×10-6cm/
dyne - Dynamic compliance: 6.5×10-
6cm/dyne(100Hz) - Tip shape: elliptical needle (
0.4×0.7mil) - Needle bar: aluminum alloy
tube - Vertical tracking angle: 20°
- Dimensions: H17.2×W17.0×D30.
5mm - Cartridge weight: 5.7g
