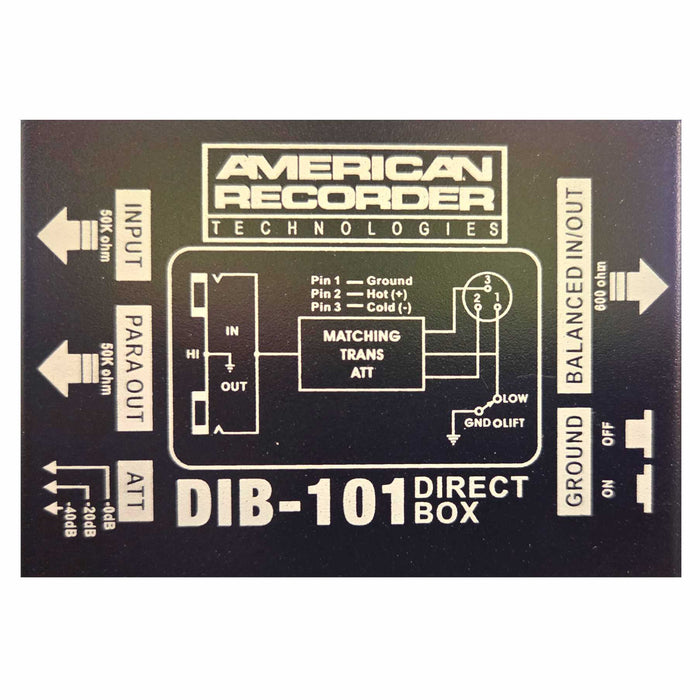

The AMERICAN RECORDER DIB-101 Passive direct box (aka "DI" box) allows interfacing and connecting all types of unbalanced high-impedance signals to balanced low impedance signals. As an example, when connecting instruments such as guitars and keyboards directly to a mixing console. This will also allow for much longer cable runs, which is not desired with high-impedance signals.
And since the DIB-101 is totally passive, it does not require any electrical power to operate, simply plug in and your good to go!
FEATURES
Perfect for use in live sound, permanent installations (club, church, auditorium, etc.), monitor systems, recording studios and DJ sound.
Enables the connection of any unbalanced audio source signal ( such as from an electronic instrument, keyboard, even from an amp speaker output) to any balanced input (such as an audio mixer).
Parallel output allows simultaneous connection to two separate inputs (such as an amp and a mixer).
Translates high-impedance instrument outputs to low-impedance balance signals or balanced low-impedance signals into unbalanced outputs.
Converts unbalanced +10dB DJ mixers signals to balanced one level signals, enabling both easier interfacing with consoles and longer cable runs.
Enables multiple keyboard setups plugged into an instrument amp to be directly input into a console mixer by connecting the speaker outputs of the amp to the console input through the direct box, thus eliminating the need for a direct box on each keyboard.
3-postion input attenuation switch (0dB, -20dB, -40 dB) facilitates proper output signal levels for optimum level matching to connected devices.
Switchable ground lift eliminates ground loop hum problems
Rugged , roadworthy all-steel construction for year of continuous reliability.
SPECIFICATIONS:
- INPUT ATTENUATIONS: 0dB, -20dB, -40dB
- INSTRUMENT INPUT: 50K unbalanced TS jack
- PARALLEL (Link) OUT: 50K unbalanced TS jack
- BALANCED OUTPUT: 600 ohm balanced XLR jack
- GROUND LIFT: Switchable on/off
- CHASSIS MATERIAL: Steel
- CHASSIS DIMENSION: 5 x 3 x 1.75 (inch)
