AMERICAN RECORDER DB25 to Dual RJ45 Adapter with TASCAM DIGITAL/ANALOG Pinout

by American Recorder
Sold out
$ 44.95
SKU MOD-DB25-DRJ45-T
  • Plug and play design
  • RJ45 connectors for reliability
  • Low cost
  • Rugged molded adapters
  • Uses twisted pair CAT6 for superior signal transmission and low noise
  • Make changes in seconds
  • No down time waiting for custom made cables
  • Ideal for wiring studios, control rooms and equipment racks

Finally there is an alternative to those expensive and bulky DB25 Cables. American Recorder’s new DB25 Modular Adapters are ideal for easy and quick point to point connection of audio devices equipped with DB25 connectors. Simply plug the DB25 adapter into the audio device and connect a pair of shielded CAT6 cables to the RJ45 jacks on the adapter’s backside. On the other end of the CAT 6 cable connect the appropriate connector to mate with audio device.  Each CAT 6 cable contains 4 channels of twisted pair wires for clear, low noise audio. In addition, CAT6 cables are very lightweight and easy to run.

DB25 Adapters are available in two models, with pin outs for TASCAM or YAMAHA audio devices. For even greater flexibility, we also provide breakout adapters with XLR, TRS and Bare End configurations. No need to wait weeks to get custom made DB25 cables. Just choose your connectors and cable length and you are good to go. Adapters can be used with either both digital or analog applications.

This DB25 adapter can be used with audio equipment using TASCAM DIGITAL and ANALOG Pin out.  Can also be used with other audio equipment using TASCAM pinout including Digidesign and Panasonic.  Always check with your equipment's manufacture to confirm compatibility.

These DB25 adapters are not compactable with ethernet networks.

Customer Reviews

Based on 2 reviews
50%
(1)
50%
(1)
0%
(0)
0%
(0)
0%
(0)
J
John Grey
Works great but pins are different than either rj45 T568 A or B standard

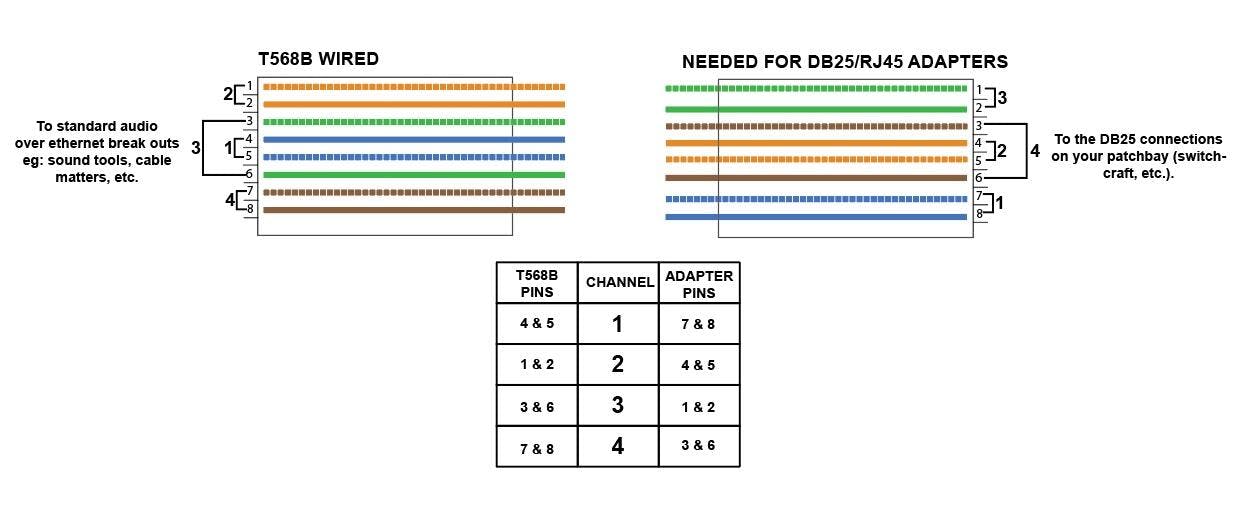

These adapters work great but make sure you check the diagram for the pins on the rj45 side of the adapter. I had to cut and re-terminate my whole set up because these adapters wouldn't work with T568A or B. This made all my Sound Tools boxes and breakout cables (from amazon) useless. I've attached a diagram of the way you'd have to wire your cables to use these adapters with standard audio over ethernet boxes. Each end of your cable run is wired differently to get your channels back in the right place. Once that was done it all worked great.

User picture
J
Joshua Del Barrio
Perfection for a travel rig!

Using a 16 channel 4x db25 out splitter. Cut the weight of db25 xlr snakes out of my rig!
