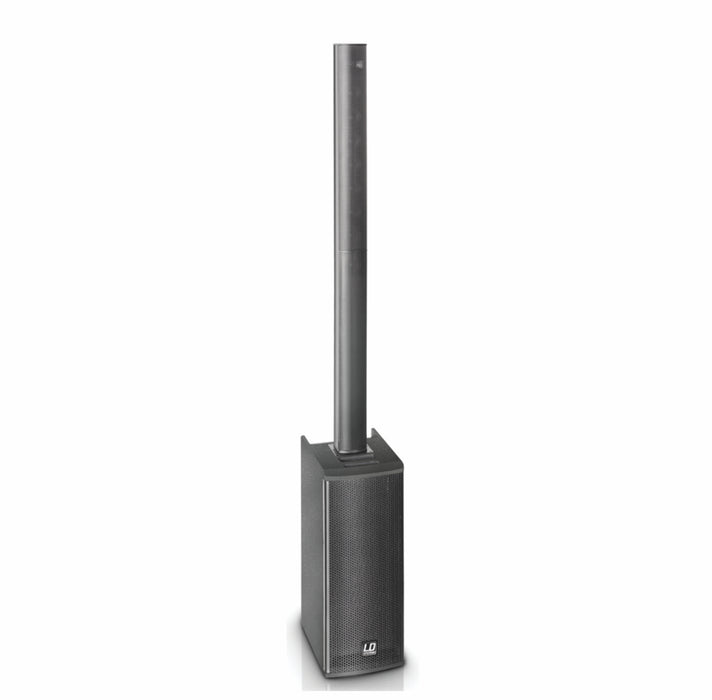

LD SYSTEMS MAUI 11 Active Column PA System
MAUI 11 MIX COMPACT COLUMN PA SYSTEM ACTIVE WITH INTEGRATED 3-CHANNEL MIXER
The MAUI 11 MIX is a Class D powered vertical array system with plug-and-play convenience, extremely high feedback resistance and 120° horizontal coverage eliminating the need for dedicated monitors. Featuring an integrated mixer and digital processing it provides the perfect all-in-one solution for solo
performers, small groups, mobile DJs and corporate applications.
Loaded with 2 x 6.5" drivers the system's vented subwoofer and the sealed aluminum column design with eight 3" speakers and single 1" horn tweeter deliver a peak output of 1200 watts. The subwoofer's
connector panel includes inputs for microphone, line and hi-Z signals as well as MP3 players or laptops which can be used simultaneously. Individual controls allow for input channel, system and sub-
woofer level adjustment. The MAUI 11 MIX also features short circuit and over-
current protection and LD Systems' proprietary LECC DSP which performs limiter, equalizer, compressor and crossover duties for reliable operation and exceptional audio quality.
Due to its custom made multi-pin connectors the MAUI 11 MIX is set up in no time requiring neither speaker cables nor stands while the minimum weight and compact dimensions provide easy portability.
OPTIONAL ACCESSORIES:
- Nylon cover (subwoofer)
- Nylon carrying bag (column)
SPECIFICATIONS:
- Product number: LDMAUI11MIX
- Product type: PA system
- Type: active
- Colour: black
- Max. SPL (continuous):114dB
- Max. SPL (peak):122dB
- Frequency response: 50 - 20000Hz
- Dispersion (H x V): (horizontal) 120°
- Overall height: 1950mmWeight:23.7kg
- Other features: DSP-based signal processing
Woofer characteristics
- Low/mid driver dimensions:2 x 6.5"
- Low/mid driver dimensions (mm):2 x 165.1mm
- Woofer magnet:Ferrite
- Woofer brand:Custom-made
- Woofer voice coil:1.5"
- Woofer voice coil (mm):38.1mm
- Cabinet construction:vented
- Cabinet material: 15 mm Plywood
- Cabinet surface: texture paint
- Subwoofer width: 256mm
- Subwoofer height: 650mm
- Depth Subwoofer:355mm
Mid/Hi System
- Midrange size:8 x 3"
- Midrange size:8 x 76.2mm
- Midrange magnet:Neodymium
- Midrange brand:Custom-made
- Midrange voice coil:1"
- Midrange voice coil:25.4mmHorn:
- CD hornTweeter dimensions:1"
- Tweeter dimensions (mm):25.4mm
- Tweeter magnet:Neodymium
- Tweeter brand:Custom-made
- Tweeter voice coil:1"
- Tweeter voice coil (mm):25.4mm
- Mid/Hi system impedance:4Ohm(s)
- Loudspeaker inputs:1
- Speaker input connections:Custom-made multipin
- Cabinet construction mid/high:Closed
- Mid/Hi system cabinet material:aluminium
- Mid/Hi system cabinet surface:HD coating
- Mid/Hi system width:94mm
- Mid/Hi system height:1300mm
- Mid/Hi system depth:95mm
Amplifier Module (integrated in Subwoofer)
- Amplifier:Class DAmplifier
- Output System (RMS):300WAmplifier
- Output System (Peak):1200W
- Protection circuits:short circuit, Multiband limiter, thermal overload
- Cooling: Convection
- Controls: Mic Level, MP3 / Hi-Z Level, sub level, Main Level, Line Level
- Indicators:limit, protect (protection circuit engaged), signal, on
- Operating voltage:Switching Power Supply, 200 V AC - 240 V AC, 50 - 60 Hz (automatic conversion), 100 V AC - 120 V AC, 50 - 60 Hz
- Power consumption Off / On / Max.:0 / 11 / 600W
- Line inputs:2 x stereo
- Line input connectors:RCA, 6.3 mm Jack, XLR
- Input impedance:25000Ohm(s)
- Input sensitivity:- 5dBu
- Line outputs:1 x stereo
- Line output connectors:XLRMic inputs:1, XLR, 6.3 mm Jack
- MP3 inputs:1
- MP3 input connectors:3.5 mm jack
- Hi-Z inputs:1
- Hi-Z input connectors:6.3 mm Jack
- Loudspeaker outputs:1
- Speaker output connections:Custom-made multipin
DSP characteristics
- Bit depth AD/DA converter:24 / 24bit
- Internal sampling frequency:48kHz
- Signal/noise ratio:100dB
