Active Column PA System - AMERICAN RECORDER TECHNOLOGIES, INC.

Active Column PA System

LD Systems regular price - $ 1,699.99

  • 1,39999
  • Save $ 30000

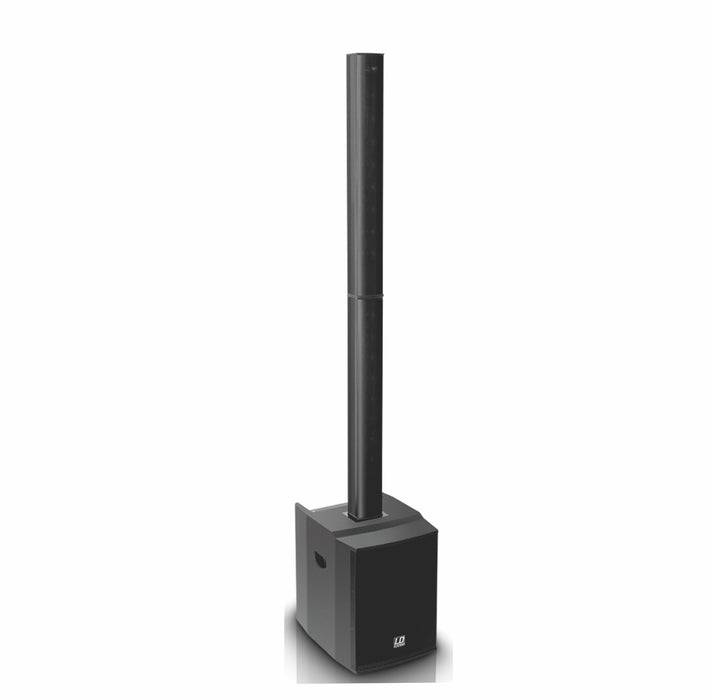

MAUI 28 MIX COMPACT COLUMN PA SYSTEM ACTIVE WITH INTEGRATED 3-CHANNEL MIXER

The MIX version is the especially versatile variant of the MAUI 28: expanded connection and control capabilities make this compact PA-System the ideal all-round solution for solo entertainers, DJs, and presentations; the elegant look is also suitable for permanent use in sophisticated surroundings.

An XLR-jack combo socket serves as the microphone input. The high-impedance jack input for instruments such as a guitar, or the mini-jack for connecting MP3 players are activated with a slide switch. For mixers, computers, and other line-level signal sources, e.g., keyboards, the LD MAUI 28 MIX system is equipped with RCA and combo sockets. Of course, the various input channels can be
used simultaneously. The channel volumes, master volume, and subwoofer level
can be adjusted individually using separate controls and 1600 watts of peak system power.

Reliable functioning is ensured by a built-in dual limiter and the protection circuit. The intelligent plug & play design with special plug-in connectors makes the system extremely fast and simple to set up and take
down. The 5-way Class AB amplification drives the individual frequency ranges separately for
perfectly balanced reproduction with a homogenous, natural sound and wide dynamic range.
The wide horizontal dispersion angle of 120° and extremely high resistance to feedback make separate monitors unnecessary.

OPTIONAL ACCESSORIES:

  • Caster Board
  • Nylon Bags

SPECIFICATIONS:

  • Product number: LDMAUI28MIX
  • Product type: PA system
  • Type:active
  • Colour:black
  • Max. SPL (continuous):115dB
  • Max. SPL (peak):123dB
  • Frequency response:45 - 20000Hz
  • Dispersion (H x V):(horizontal) 120°
  • Weight:36.1kg

Other features:extremely simple assembly and connection control through LED indicator, includes 3-channel mixer, stable connection with 4 steel pins, simple wireless plug-in connection by means of multi-pin connector

Subwoofer

  • Low/mid driver dimensions:2 x 8"
  • Low/mid driver dimensions (mm):2 x 203mm
  • Woofer magnet:Ferrite
  • Woofer brand:Custom-made
  • Cabinet construction:V Construction, vented
  • Cabinet material:15 mm Plywood
  • Cabinet surface:Dura Coat LX Texture Paint
  • Subwoofer width: 390mm
  • Subwoofer height: 450mm
  • Depth Subwoofer:510mm
  • Subwoofer weight:27.7kg
  • Subwoofer features:Custom-made multipin connector for vertical array

Mid/Hi System

  • Midrange size:16 x 3"
  • Midrange size:16 x 76mm
  • Midrange magnet:Neodymium
  • Midrange brand:Custom-made
  • Tweeter dimensions:1"
  • Tweeter dimensions (mm):25mm
  • Tweeter magnet:Ferrite
  • Tweeter brand:Custom-made
  • Loudspeaker inputs:1
  • Speaker input connections:Custom-made multipin
  • Cabinet construction mid/high:Closed
  • Mid/Hi system cabinet material:aluminium
  • Mid/Hi system cabinet surface:painted
  • Mid/Hi system width:110mm
  • Mid/Hi system height:790mm
  • Mid/Hi system depth:90mm
  • Mid/Hi system weight:3.7 / 4.1kg
  • Mid/Hi system features:Vertical array with 4-way amping and extremely broad dispersion characteristic

Amplifier Module (integrated in Subwoofer)

  • Amplifier:5-way Class A/BAmplifier
  • Output System (RMS):400WAmplifier
  • Output System (Peak):1600W
  • Protection circuits:Dual limiter
  • Cooling:Aluminium heat sink
  • Controls:volume, Subwoofer Volume, mains switch (on/off)
  • Indicators:limit, Power, Lock, protect (protection circuit engaged), signal
  • Operating voltage:transformer, Volex mains socket, 220 V AC - 240 V AC, 50-60 Hz
  • Line inputs:2
  • Line input connectors:RCA, 6.3 mm Jack, XLR
  • Line outputs:2
  • Line output connectors:XLR (MIX output)
  • Mic inputs:1, XLR, 6.3 mm Jack
  • MP3 inputs:1
  • MP3 input connectors:3.5 mm jack
  • Hi-Z inputs:1
  • Hi-Z input connectors:6.3 mm Jack
  • Loudspeaker outputs:1
  • Speaker output connections:Custom-made multipin
