AZDEN PRO Series DSLR Audio Kit

by AZDEN
Sold out
Original price $ 350.00
Current price $ 280.00
SKU AZD-WHD-PRO + i

VHF Wireless Microphone System for Smartphones & Tablets

Features

  • Smartphone and tablet compatible!
  • SGM-990 shotgun microphone
  • WL/T-PRO body-pack transmitter & lapel mic
  • WR-PRO Camera Mount Receiver
  • 2 selectable operating frequencies
  • Operates in the low-interference VHF band
  • Transmit audio up to 250 feet away

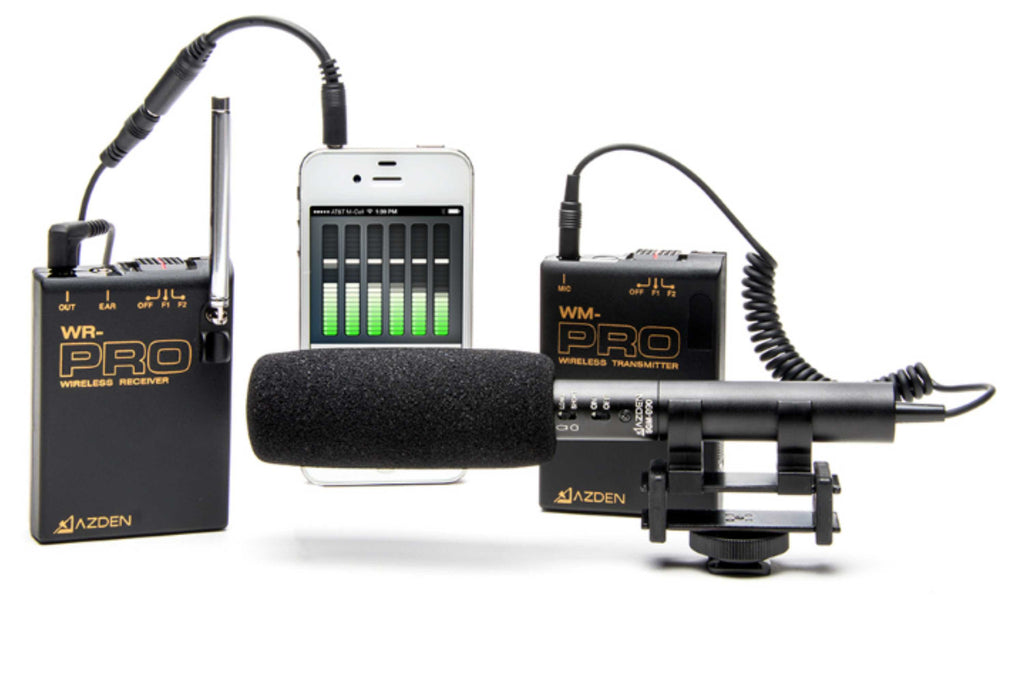

Azden’s most popular DSLR audio products are now compatible with Smartphones and Tablets! The WLX-PRO+i includes a new interface cable making it compatible with any mobile device with a TRRS jack. Record great wireless audio into your iPhone® 3/4/5/6, iPad® (3rd generation and newer), Samsung Galaxy S® 3/4/5, Galaxy Tab® 3 and most Android™ devices. A complete videographer's audio solution, the WHD-PRO+i combines Azden's very popular wireless lavalier audio kit and DSLR microphone. The WHD-PRO+i comes with a custom hard-shell carrying case for easy portability.

The WL/T-PRO combines the WM-PRO body-pack transmitter with the EX-503 electret condenser omni-directional lavalier microphone. This is the standard 2 frequency switchable (169.445MHz and 170.245MHz) body-pack transmitter for all “PRO” series receivers. Uses a single 9V alkaline battery and comes with a belt-clip.

The WR-PRO is a single channel receiver, but has two selectable operating frequencies to choose from (169.445MHz and 170.245MHz) giving the user an option in case one channel has interference. Comes with camera shoe mount and a hard wired 3.5mm mono microphone output cable.

The SGM-990 is a 6″ long directional, or “zoom” microphone with 2 switchable sound pick-up patterns, "Long" and "Short." Use "Long" to focus on your sound source or pick up sound from a distance. Use "Short" for when your sound source is close or covers a broader field. Both settings will provide rejection of unwanted sound from the sides and the back. The SGM-990 has a working range of 20-40 feet, uses 1 “AAA” battery, and comes with a windscreen, shoe mount and hook-and-loop mounting tape.

In The Box

  • WR-PRO VHF Receiver
  • WL/T-PRO VHF transmitter/lapel mic
  • SGM-990 shotgun microphone
  • Adapter cable for mobile devices
  • Shoe mounts for receiver and mic
  • Hook & Loop Mounting Tape
  • Ear Phone Monitor
  • Hard shell carry case
  • Manual



SPECIFICATIONS:

WL/T-PRO

  • TRANSMISSION FREQUENCY: F1: 169.445MHz; F2: 170.245MHz
  • ANTENNA: Internal Antenna
  • MIC UNIT: Uni Dynamic
  • BATTERY: 1.5V (AA) x 1 (not included)
  • POWER CONSUMPTION: 100mA
  • RF OUTPUT: 10mW
  • IMPEDANCE: 8 k ohms
  • BATTERY LIFE: 8 to 10 Hours
  • DIMENSIONS: 62mm (Ø) x 211 mm – (2.4″ x 8.3″)
  • WEIGHT (including battery): 170g (6.0 oz)

SGM-990

  • Mic Element: Electret condenser
  • Frequency Response: 150-18KHz
  • Sensitivity: Long: 55dB / Short: 72dB (at 1kHz 1V/µ bar)
  • Directional Pattern: switchable long (super-cardioid) & short (cardioid)
  • Output Impedance Long: 1.7k Ohms / Short: 660 Ohms (at 1kHz)
  • Power Source: 1.5V DC (“AAA” Battery)
  • Max. SPL: 100dB
  • Signal to Noise: Better than 40dB
  • Plug Cord Assembly: Coiled cord with 3.5mm plug

WR-PRO

  • Reception Frequency: F1: 169.445MHz; F2: 170.245MHz
  • Receiver type: Double superheterodyne
  • Sensitivity: 2mV @ S/N of 40dB
  • Battery: 1-9V Alkaline
  • Power consumption: 25mA
  • Monitor output: 1V @ 30W, Modulation frequency: 1kHz, Deviation: +/-7kHz
  • Mic output: 8mV w/10KW load, Modulation frequency: 1kHz, Deviation: +/-7kHz
  • Mic output impedance: 300Ω
  • Dimensions: 86(h) x 60(w) x 21.5(d) mm (3.3” x 2.4” x 0.85”)
  • Weight w/battery: 128g (4.5oz)
